Detailed Product Description
USB CABLE KINDS

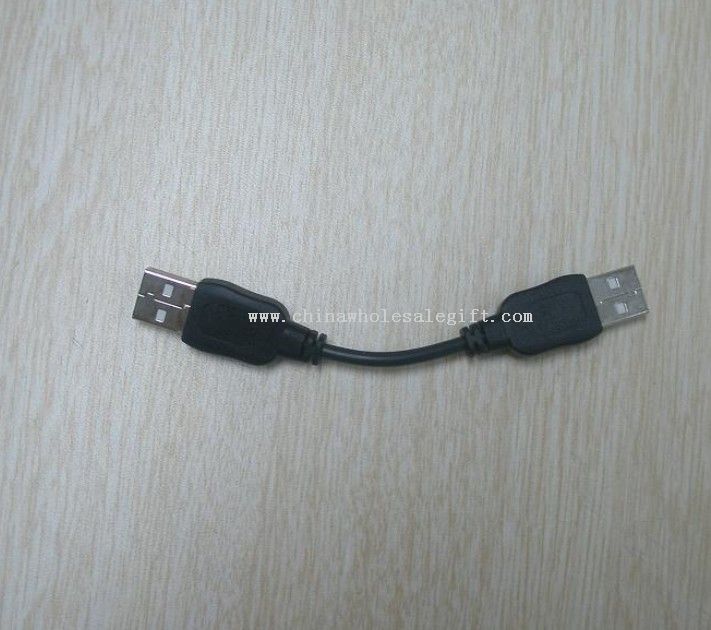

1. USB A TYPE MALE TO MALE(USB CALE AM TO AM )
USB A TYPE FEMALE TO MALE(USB CABLE AF TO AM )
Used for the extension and data connectiong of digital products

2. USB A TYPE MALE TO MINI USB 5P MALE(USB CABLE AM TO MINI 5P)
Used for linking computer and MP3 player, printing
Used for linking computer and Mobile device

3. USB A TYPE MALE TO MINI USB 4P MALE(USB CABLE AM TO MINI 4P)
Digital cameras, MP3 players, camcorders and PCs

4. USB A TYPE MALE TO CELLPHONE(USB CABLE AM TO CELLPHONE)
Used for cell phone charging and data-downloading

5. USB A TYPE MALE TO DC(USB CABLE AM TO DC)
Used for linking of the video products

LENGTH OPTION:
Custom-tailing according to customer's requirement

CHARACTERISITIC OF THE WIRE
1)rated temperature: 80º C
Charactoristic
2)rated voltage: 30V

3)reference standard: UL758, UL1581&USB2.0 specification

4)stranded bare or tinned copper conduct, 28-20awg

5)solid, hdpe insulation

6)tinned stranded copper drain wire

7)tinned copper wire brain shield

8)PVC jacket

9)pass ul vw-1 vertical flame test

10)member of USB-IF, vender code 5797

11)differential impedance at 20oC(tdr): 90Ω (15%windage)

12)common mode impedance at 20oC(tdr): 30Ω (30% windage)

13)propagation delay (tdr differential): 5.2ns/m

14)single ended skew: <=100ps(tdr)

Product descriptions: Hi-speed usb 2.0 cable (compliant with usb 1.1 and usb 1.0): One 28 awg twisted pair (data) plus two power conductors overall shield: Overall aluminized polyester shield with drain wire plus tinned copper braid shield
