Detailed Product Description

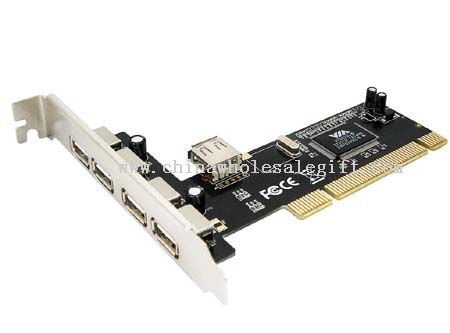

5 Port USB 2.0 High speed Inter PCI Adapter

Features & Specifications

Chipset Solution: VIA VT6212L

Provide 5 downstream USB Type A receptacle (4 External, 1 Internal)

Supports PCI-Bus Power Management Interface Specification release 1.1

Host Controllers for full/low-speed signaling & 1 EHCI Host

Compliant with USB Specification Revision 2.0

Compliant with EHCI Specification Revision 0.95

Compliant with UHCI Specification Revision 1.1

Provide up to 480Mbps Transfer Speed

Support all USB compatible Devices

32 Bit Slot type USB PCI Adapter

Support Plug-and-play

Environmental Specification

Storage Temperature: -40oC ~70oC

Operating Temperature: 0oC ~40oC

Storage Humidity: 5% ~90% RH Non-condensing

Operating Humidity: 10% ~90% RH Non-condensing

OS Support

Windows 98 SE / Windows Me/Windows 2000 but no need driver under win 2000 SP4

Windows NT/Windows XP/ Windows Vista

Mac 10.2, 10.3, 10.4/ Linux 2.4.23 & 2.6.0 or above

Package Contents

5 Port USB 2.0 PCI Card

Quick Installation Guide

Driver CD
