Promotional Laptop AC/DC Adaptor-China Customized Laptop AC/DC Adaptor- CWSG24773

Gift wholesale>Electric Gifts>Computer peripheral Gifts>Notebook PC Accessories

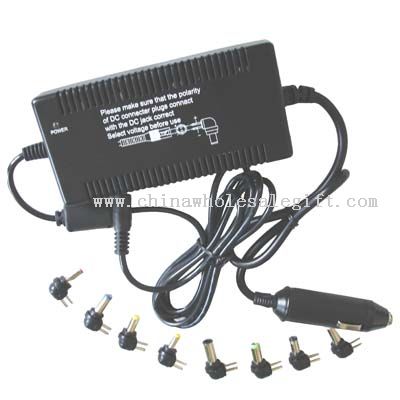

Laptop AC/DC Adaptor

Product Name: Laptop AC/DC Adaptor

Model No.:CWSG24773

Price Terms: FOB

Payment Terms:T/T

Delivery Lead Time: 10 days

Product Origin: China

Detailed Product Description

This model is a switching-mode power supply,operation at input AC voltage 95V to 265V and
output dc voltage of 16V@3.7A/18V@3.3A/19V@3.2A/20V@3.0A load, with many protection functions,
use for the laptop computer power supply.
1) Rated Input Voltage: AC120V OR AC230V
2) Vibration Input Voltage Rage: AC95V-265V
3) Input Rated Current: 0.5AMP
4) Input Min.Current: 0.1A
5) Input Power: 70W Output Power: 80W/100W
6) Efficiency: >80%(TYP)
7) Output Voltage:16V/18V/19V/20V(0/+0.6V NOLOAD) DC16V-20V
8) Output voltage:16V/18V/19V/20V(-0.4/+0.5v@rating load) DC16V-20V
Output current:3.7A@16V/3.3A@18V/3.2A@19V/3.0A@20V 3.7MP(max)
9) Output over voltage protection:>24V
10) Overload protection
11) Short Circuit Protection
12) Ripple Noise: 500mV
l3) Line Regulation: 1%
14) Load Regulation: 1%
15) Normal Operating Temperature and Humidity:
6.1 Operating Temperature:0℃ to 40℃
6.2 Humidity:20% to 80%
16) Storage Temperature and Humidity:
7.1 Storage Temperature:-10℃ to 70℃
7.2 Humidity: 10% to 90%

Colors Available :

Black

Type of Packing :

Color Box

Package Includes :

User Manual

Packing Information :
