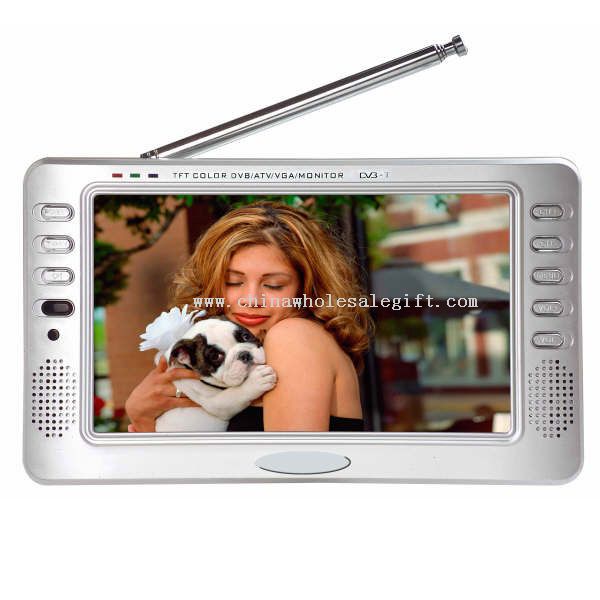

7 INCHES RATIO  16:9  TFT LCD DVB-T MONITOR
Dot Matrix(mm) 0.107(H)*0.372(V)
display resolution 1440(H)*234(V)
contrastness
CONTRAST:150:1
Brightness 300cd/m2
reponse time(ms) R:30/F:50
viewing angle U:15/D:35 L/R:55
video input 1VP-P 75OHM(ONE ROUTE)
audio input 1.5VP-P double sound track ( left and right)
audio output Build-in louderspeaker(0.3w*2)
power supply DC12V     16W
Power  ( 2 option)  1.  AC adaptor       2. Car adaptor
life expectancy of lamp >10000 Hours
Connecting Terminal External antenna input jack, AV input jack, DVB-T/TV output jack, external power supply input jack.


DTV system
(1) Tune
Input code rate: 4.98~31.67Mbit/s(8MHZ bandwidth
Modulate: QPSK，16-QAM，64-QAM
Bandwidth: 7MHZ & 8MHZ            FFT mode:   2K/8K
(2) Input
Input frequency: VHF 177.5MHZ~226.5MHZ UHF 474MHZ~858MHZ
Input Voltage:  -20 ~ -65 dbmV
Input Resistance: 75 Ohm

(3) MPEG II Decode
Standard of decode: MPEG 2 ISO/IEC 13818  MPEG2  MP@ML
Input code rate: max. 60Mbit/s
video output proportion: 4:3 , 16:9   video format: video
video resolution: 720*576 (PAL), 720*480 (NTSC)
sound standard of decode: MPEG1, LAYER1, 2 Musical
sound output mode: stereo, double sound track ( left and right)

(4) video output
output resistance: 75 Ohm,       output voltage:  1.0+/-20m Vp-p
(5) audio output
output resistance: 680 Ohm
(6) display device  OSD DISPLAY

ATV SYSTEM
(1) adjustment qty of analogue  brightness,contrastness,resolution,color,volume(0-100)
(2)TV receiveing ALL CHANNELS SUDJOIN TV
(3) colour system  PAL N3.58,N4.43(secam can be made to order)
(4) sound system: B/G(5.5M),I(6.0M),D/K(6.5M)
(5) H. system  15.625KHZ(PAL)/15.670KHZ(NTSC)
(6) V. system 50HZ(PAL),60HZ(NTSC)
(7) Storage programme  255 SETS PROGRAMMES
(8) Menu language ,ENGLISH,.GERMAN,FRANCE,DUTCH,SPANISH, ITALIAN PORTUGUESE ( W)218mm*(H)155mm*(T)40mm


outer dimension
net weight around 805g
operation temperature5~35 degree
storage temperature-40~60
power consumption around 16W

ACCESSORIES
1.stand
2.remote control
3.earphone
4.AC100~240V   AC adaptor
5.car adaptor
6.Car digital antenna
7.AV line
