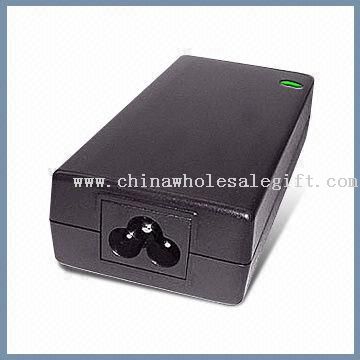

CCTV Power Supply
| Model No. | CWG35031 |
|---|---|
| Sample Time | 7 days |
| OEM / ODM | Available |
| Port | Shenzhen or HK,China |
| Views | 2181 views |
US$ 3~18 /Piece | Get Latest Price
Product Detailed Description
- Universal input: 90 to 264V AC, 47 to 63Hz
- CEC IV compliance
- C6/C14C/C8 AC socket optional
- All products 100% burn-in tested
- Output voltage: 12 to 50V
- EMC standard: EN55022, CISPR 22, FCC part 15 class B, EN6100-3-2, 3, 4, 5, 6, 8, 11, EN55024
- Leak current: 0.75mAh maximum
- Withstand voltage:
- I/P-O/P: 3,000V AC (class II)
- I/P-O/P (V+): 4,242V DC
- I/P-FG: 2,121V DC (for class I)
- Efficiency: 70% minimum at full load, 230V AC
- Voltage regulation: ±5% to +/-3%
- Ripple and noise: 0.016Vp-p maximum
- Working temperature: -10 to 70°C (debated linearly from 100% load at 40°C to 50% load at 70°C)
- Storage temperature: -40 to +85°C
- Relative humidity: 20 to 90% RH
- Protections: OVP, OLP, overload, and short-circuit protection
- Cooling: convection cooled
- Safety certification: UL, cUL, CEC, IV, FCC, CB, and CE
- Output the voltage:
- FRA120-S12: 12 to 16V
- FRA120-S15: 16 to 19V
- FRA120-S18: 19 to 22V
- FRA120-S24: 22 to 24V
- FRA120-S36: 30 to 36V
- FRA120-S48: 40 to 50V
