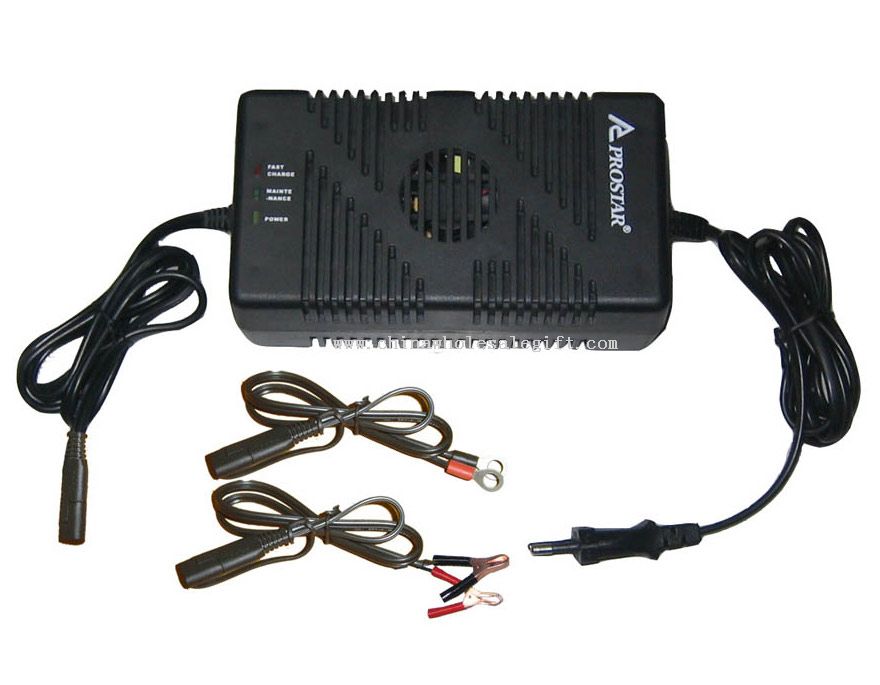

PSC Series Battery Charger
| Model No. | CWG25525 |
|---|---|
| Sample Time | 7 days |
| OEM / ODM | Available |
| Port | Shenzhen or HK,China |
| Views | 433 views |
US$ 1~25 /Piece | Get Latest Price
Product Detailed Description
Lead-Acid Battery ChargerFeatures:
1) PSC (with DC fan) series
2) Max.150W
3) 3-step charge control
4) Switching Power Supply mode
5) Charge current not affected by fluctuations in mains voltage
6) The wide input voltage range
7) Have system LED function
8) Short circuit / over load / over current/ polarity protection
9) Built-in EMI filter, low noise and ripple
10) Small volume and light weight
11) Apply to electric-tour-vehicle, golf-vehicle, electric-barge, electric-vehicle,
electric-wheelchair-vehicle and all kinds of electric fixture which dispend of
lead-acid battery
12) Accord with CE attestation of all country's safety standard
13) Battery protected against reversed polarity, exchangeable output plugs
14) Over heat protection
15) 12V series (1204 / 1205 / 1206 / 1208 / 1210) have already passed the CE attestation
Technical specifications (12V version):
1) Input voltage: 110 / 230 (-10%-25%) choice
2) Input frequency: 47Hz-63Hz
3) Operating temperature: -10-40°C
4) Efficiency (at full load): ≥80%
5) Insulation voltage:
a) Primary-ground: 3750V AC
b) Primary-secondary: 3750V AC
c) Secondary-ground: 500V AC
6) Electrical safety standard: EN60335-1 and EN60335-2-29
7) Indication:
a) Fast charge: red light on, green light off, yellow light on
b) Absorption charge: red light on, green light off, yellow light on
c) Maintenance / float: red light off, green light on, yellow light on
8) Dimensions (mm): 175 x 95 x 60
9) Weight: 800g
10) Connect of input: AC plugs from the USA, Europe, the UK are available
11) Connect of output: DC plugs from AV single core, power three cord, round three
cord, microphone three cord and clip
12) Protection: short-circuit / over-load/over-current protection / reverse polarity
protection
13) Cooling: with DC fan
14) Crust: arrest burnt ABS
