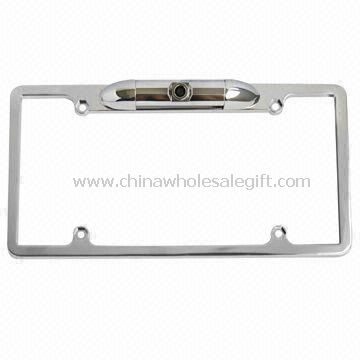

Car Backup Camera License Plate for Waterproof Vehicle Reversing System for N/S America Use
| Model No. | CWG44773 |
|---|---|
| Sample Time | 7 days |
| OEM / ODM | Available |
| Port | Shenzhen or HK,China |
| Views | 504 views |
US$ 5~16 /Piece | Get Latest Price
Product Detailed Description
- Car backup camera license plate built-in swivelling CCD for waterproof vehicle reversing system
- Image pick-up device: 1/4-inch Sony color CCD
- Horizontal resolution: 420TV lines
- Aluminum license plate frame with built-in swivel CCD camera
- Number of pixels:
- NTSC: (H) 510 x (V) 492
- PAL: (H) 628 x (V) 582
- Scanning system:
- NTSC: 525 lines, 60fps
- PAL: 625 lines, 50fps
- Internal synchronization system
- Fully adjustable camera angle
- IP65 water-resistant design
- Gamma characteristic: 0.45
- S/N ratio: ≥48dB (AGC off)
- Electronic shutter speed:
- On:
- NTSC: 1/60 to 1/100,000 seconds
- PAL: 1/50 to 1/100,000 seconds
- Off:
- NTSC: 1/60 seconds
- PAL: 1/50 seconds
- On:
- Usable illumination: 3Lux (F:1.4)
- Board lens: 3.7mm pinhole lens/F2.0 (optional)
- Video output: 1.0Vp-p, 75Ω
- Auto gain control
- Cable: BNC jack
- Water resistance: IP66
- Power supply: 12V DC±10%, 400mA
- Temperature:
- Operating: -10 to +50°C
- Storage: -20 to +60°C
- Dimensions: 310 x 160mm
- Suitable area: USA, Canada, Mexico, Venezuela and Puerto Rico vehicle license plate
- Weight: 500g
