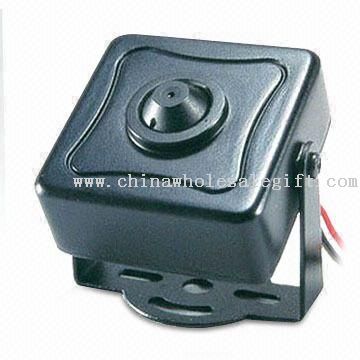

B/W and Color Mini Camera(3.7mm lens)
| Model No. | CWG24046 |
|---|---|
| Sample Time | 7 days |
| OEM / ODM | Available |
| Port | Shenzhen or HK,China |
| Views | 782 views |
US$ 4~32 /Piece | Get Latest Price
| Model No. | CWG24046 |
|---|---|
| Sample Time | 7 days |
| OEM / ODM | Available |
| Port | Shenzhen or HK,China |
| Views | 782 views |
US$ 4~32 /Piece | Get Latest Price
A discreet pinhole-style surveillance camera built for installers who need monitoring without drawing attention. The miniature housing tucks easily above doorways, along shelving, or into display fixtures, while the tiny fixed lens keeps the viewing point nearly invisible to passersby.
At its core is a 1/3-inch Sony CCD pickup that supports both monochrome and color operation, so distributors can stock one housing family for budget-conscious black-and-white jobs and sharper color installations alike. PAL and NTSC signal compatibility simplifies sourcing for projects spanning different regions.
Wired to a standard 12V DC supply, the camera records to a central recorder in shops, warehouses, schools, and residential setups. Low minimum illumination helps it hold a usable picture in dim interior corners where larger cameras struggle to mount discreetly.
Supplied for trade buyers in plain bulk cartons, it pairs naturally with infrared perimeter models for full-coverage system builds.
| Specification | Detail |
|---|---|
| Pickup device | 1/3-inch Sony CCD |
| Picture elements | PAL (H x V): 500 x 582 |
| NTSC (H x V): 510 x 492 | |
| System of signal | PAL/NTSC |
| Horizontal resolution | 420TV lines |
| Lens mount | 3.7mm lens |
| Minimum illumination | 1.0Lux/F1.2 |
| Power supply | 12V DC |
| Operating current | 120mA |
