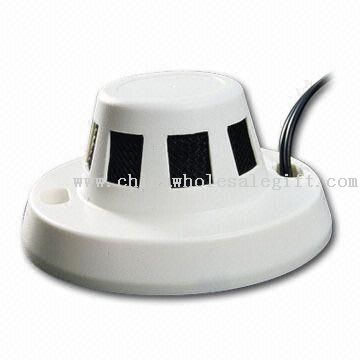

CCTV Color CCD Camera
| Model No. | CWG24045 |
|---|---|
| Sample Time | 7 days |
| OEM / ODM | Available |
| Port | Shenzhen or HK,China |
| Views | 638 views |
US$ 3~10 /Piece | Get Latest Price
Product Detailed Description
A shop entrance, a warehouse aisle, a school corridor after hours: fixed surveillance points like these need a camera that simply keeps watch. This color CCD unit is built for exactly that kind of steady, always-on duty.
Image and low-light performance
A 1/3-inch Sony CCD pickup device and 420TV lines of horizontal resolution form the core of the picture chain, with PAL and NTSC signal options covering both regional systems. Minimum illumination of 1.0Lux/F1.2 keeps the image usable as daylight fades.
Installation and optics
The 3.6mm lens mount follows standard conventions, and the housing accepts 6, 8 and 12mm optics so installers can match each camera point to its field of view. Power draw is modest at 12V DC and 150mA, suiting central recorder setups.
Ordering note
Bulk orders pack in plain cartons, and mixed system specifications can be combined to cover several jobs from one shipment.
| Specification | Detail |
|---|---|
| Pickup device | 1/3-inch Sony CCD |
| Picture elements | PAL (H x V): 500 x 582 NTSC (H x V): 510 x 492 |
| System of signal | PAL/NTSC |
| Horizontal resolution | 420TV lines |
| Minimum illumination | 1.0Lux/F1.2 |
| Lens mount | 3.6mm (6, 8, 12) |
| Power supply | 12V DC |
| Operating current | 150mA |
