Satellite TV Card
| Model No. | CWG24886 |
|---|---|
| Sample Time | 7 days |
| OEM / ODM | Available |
| Port | Shenzhen or HK,China |
| Views | 2141 views |
US$ 4~33 /Piece | Get Latest Price
Product Detailed Description
Features:1) High quality digital satellite TV and radio receiving (DVB-S)
2) High speed Internet via satellite: you need to apply an Internet ISP account first
3) DVB data service
4) Instant recording: record digitally as MPEG-2 format. 1 hour digital TV program is about 1.7G
5) Schedule recording: can set your own recording list and playback whenever you like
6) Time-shifting: you can pause live TV shows, thus will never miss any marvelous moments
7) Electronic program guide (EPG): EPG tables offer the most updated channel information
8) Teletext: teletext page is only available in certain areas
9) Still frame capture
10) Multi-channels preview matrix
11) Supports DiSEqC1.2 & USALS
12) Transponder and satellite auto scanning
13) Viewing and schedule recording different channels simultaneously
14) 16:9 wide screen
15) Multi-language output
16) Hot keys
17) Favorite list
18) Video quality adjustment
19) MPEG-2 software decoding
20) Software upgradeable
21) Supports remote control
Specifications/models:
1) TV tuner:
a) Input terminal: F-type 75Ω
b) Receiving frequency: 950 ~ 2,150MHz tuning range
c) Input level: -65 ~ -25dBm
d) Supports MCPC and SCPC
2) QPSK & FEC:
a) Symbol rate: 2 ~ 45Mbps
b) QPSK filter: root-raised cosine filter with roll-off 0.35
c) FEC: 1/2, 2/3, 3/4, 5/6, 7/8 and auto LNB and switch control
d) LNB supply voltage: 13V/18V
3) DiSEqC 1.2:
a) Supports data burst and tone burst
b) Antenna and LNB control: 22kHz tone
c) Max. LNB supplying current: 400mA with short circuit and surge protection
4) PCI interface:
a) PCI bus: PCI 2.2 compliant
b) Host BUS burst rate: 132MB/s
c) Host BUS width: 32-bit
5) De-multiplexing:
a) Max. no. of section filtering: 32PIDs
b) Engine: software
c) Stream capture: PES and TS
6) A/V formats:
a) Video format: MPEG-2 main profile and main level
b) Audio format: MPEG-2 audio layer I and II

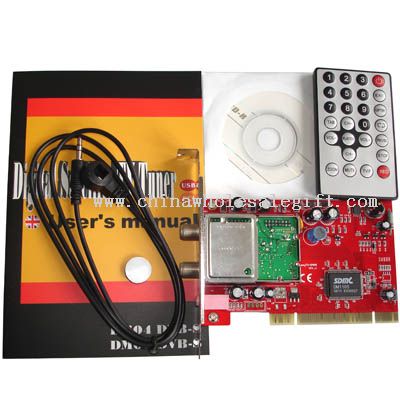

Package includes:
1) Satellite card
2) USB remote control (batteries included)
3) USB remote receiver
4) Quick installation guide
5) Installing CD
System requirements:
1) Windows 2000/XP
2) 600MHz CPU or above
3) 128M RAM or above
4) VGA card with at least 8MB memory
5) Sound card
6) Microsoft DirectX 8.1 or above
7) Digital satellite dish and LNB
