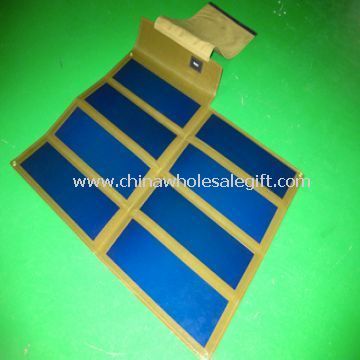

24W/12V Amorphous Foldable Portable Solar Charger

Product Detailed Description

• .Nominal power: 21.6W
• .Actual peak output power:24W
• .Nominal voltage:12V
• .Nominal current:1.8A
• .Open-circuit voltage:16V
• .Unfolding dimension: 820*640mm
• .Folding dimension: 420*180*45mm
• .Weight:1.25kgs
• Certificate:
• CE & FCC;
• Accessories:
• Output:
• Y connector(male & female combined connector)
• Available product backing colors:
• Blue,army green or jungle woodland camouflage;
• Characters and advantages:
• .Made by high-efficiency of thin film & flexible amorphous silicon cells;
• .3-layer P-N conjunction of silicon cell processing technology and thus can absorb more sunlights(red,blue & green spectrum) than
• crystalline silicon cells(only visible & low frequency of red spectrum could be absorbed);
• .The special self-owned patent technology of lamination polymer minimize the specular reflection of lights and thus more lights could
• be absorbed;
• .The special self-owned patent technology of lamination polymer minimize the lights-induced degradation & maximize its life time;
• .With canvas cloth substrate;
• .Flexible,lightweight,small cubage,water-proof,anti-corrosion,no glass/no brokeable,anti-UV & very endurable;
• .Shadow tolerance and anti-tropical island effect that make sure it always could get high output power even parts in shadow or be covered;
• .When the total weather condition is good enough,it could be with 15%-20% higher of power output than the mentioned nominal one;
• .No influence with the temperature;
• .Very suitable on those areas with less sunlights,only if there is a lights even in the room, it can generate power;
• .Lifetime:15-20 years.
• Applications:
• .Due to its multi-aspects of advantages than regular glass lamination of crystalline silicon panels,this type of panels are welcome & widely used by individual person such as hikers,campers,fishers,frequent trvalers and minitary party into the portable solar charging/power system for a portable solar charger;
•
• 48W/12V is also available
