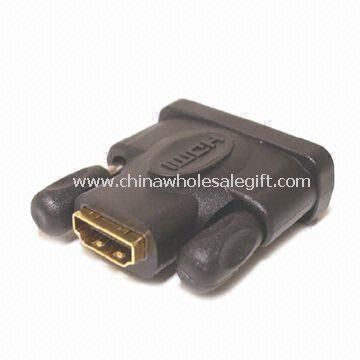

HDMI Male to DVI Female Adapter with Gold-plated Connector and Data Signal Integrity

US$ 1~33 /Piece | Get Latest Price

Product Detailed Description

It easily connect an HDMI cable and DVI cable or to connect HDMI devices and DVI devices
Connector type: gold or nickel plated
With data integrity
Cable connections: HDMI type a male/female
DVI18+1, 18+5, 24+1, 24+5

HDMI version	1.0	1.1	1.2	1.3	1.4	2.0
Date initially released	December 9, 2002	May 20, 2004	August 8, 2005	June 22, 2006	May 28, 2009	September 4, 2013
Maximum clock rate (MHz)	165	165	165	340	340	600
Maximum TMDS throughput per channel (Gbit/s) including 8b/10b overhead	1.65	1.65	1.65	3.40	3.40	6
Maximum total TMDS throughput (Gbit/s) including 8b/10b overhead	4.95	4.95	4.95	10.2	10.2	18
Maximum throughput (Gbit/s) with 8b/10b overhead removed	3.96	3.96	3.96	8.16	8.16	14.4
Maximum audio throughput (Mbit/s)	36.86	36.86	36.86	36.86	36.86	49.152 (IEC61937 and DST audio)
Maximum color depth (bit/px)	24	24	24	48	48	48
Maximum consumer resolution over single link at 24-bit/px	1920×1200p60	1920×1200p60	1920×1200p60	2560×1600p75	3840×2160p30	3840×2160p60
