Mac Mini M4 9 in 1 docking station
| Model No. | CWG65298 |
|---|---|
| Sample Time | 7 days |
| OEM / ODM | Available |
| Port | Shenzhen or HK,China |
| Views | 0 views |
US$ 5~10 /Piece | Get Latest Price
Product Detailed Description

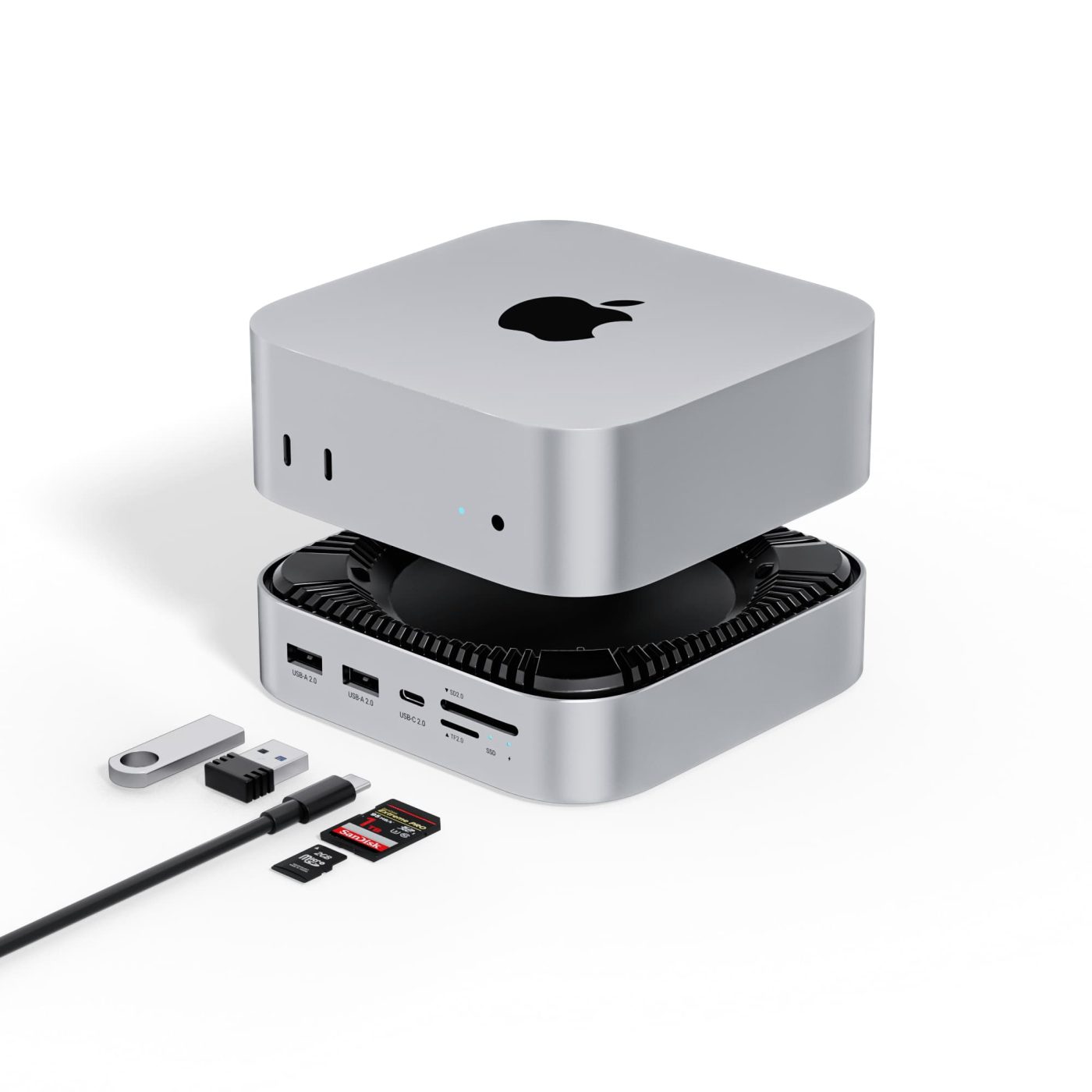

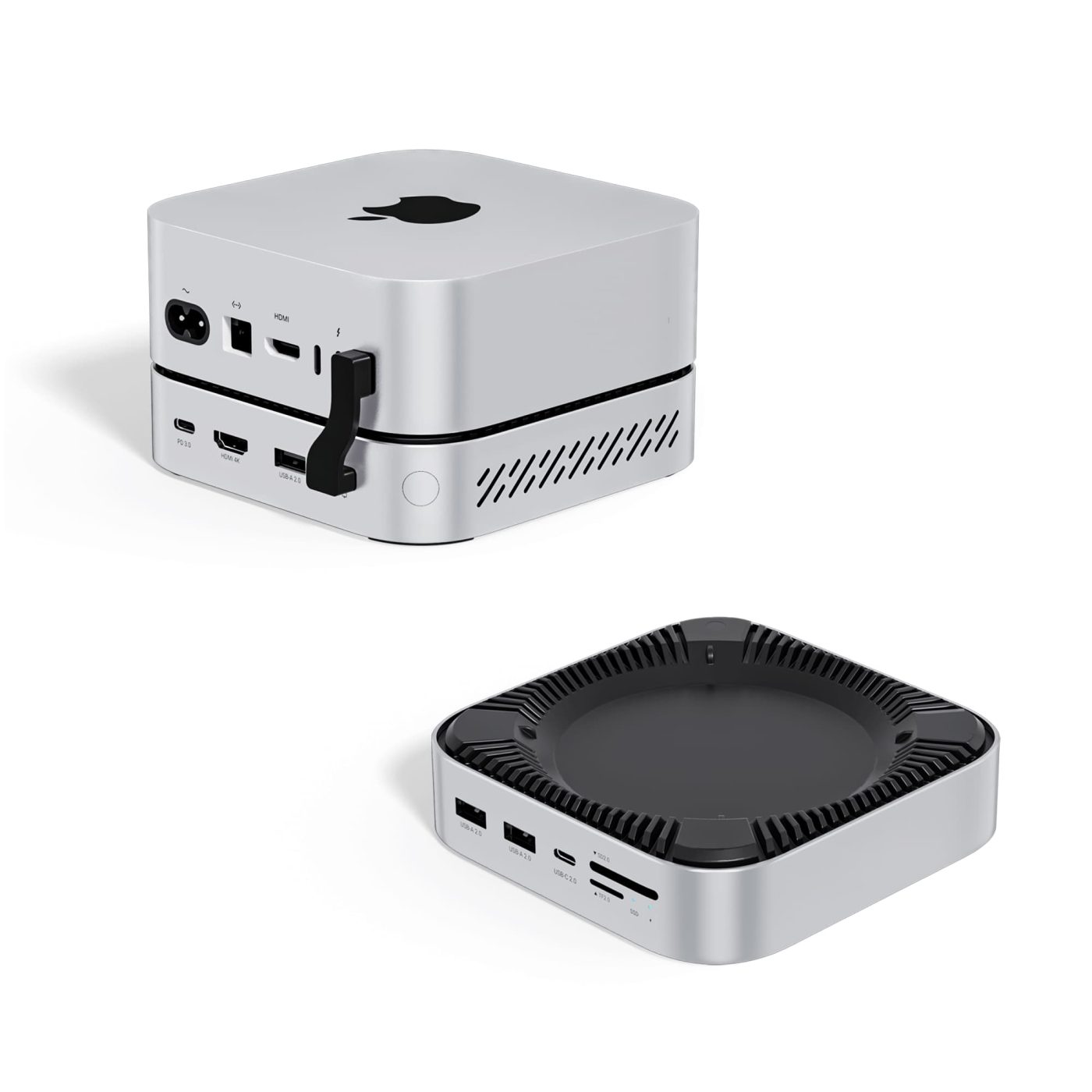

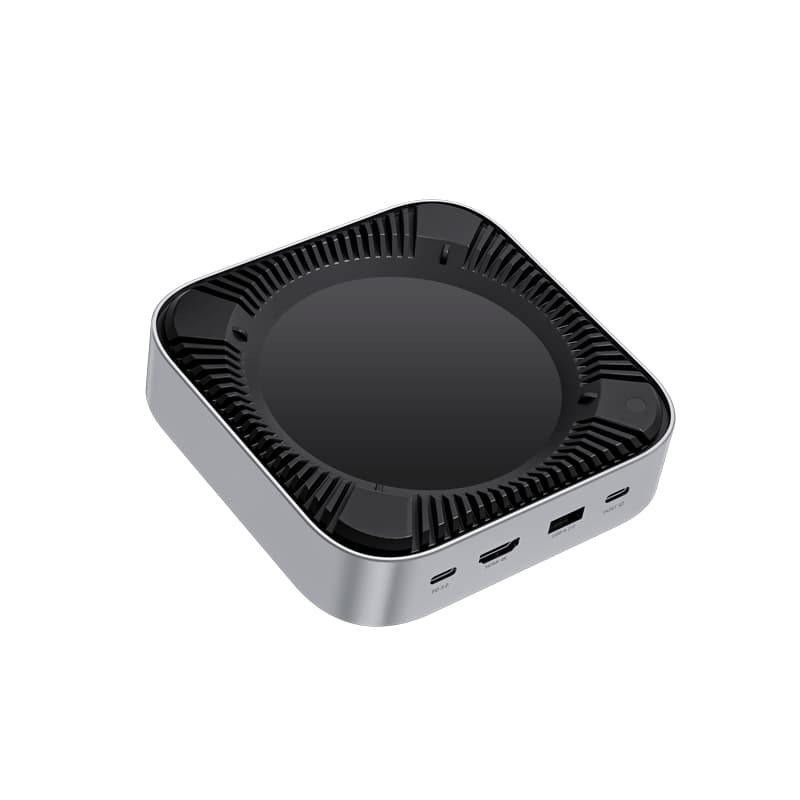

A flat square hub built to sit under a compact desktop computer and share its footprint. The shell is aluminium with plastic end caps, and the ports are grouped along the edges so cables run outward rather than piling on top. An upstream USB-C cable feeds the computer, while downstream ports, card slots and an internal drive bay are arranged around the sides. It suits a desk where the computer is the centre of the work and peripherals arrive one at a time.
- Square aluminium body matches the footprint of a compact desktop so the two stack as one block
- Upstream USB-C plug seats in the computer port and carries display, data and power over one cable
- M.2 slot inside the base takes a bare drive, so storage grows without an external enclosure on the desk

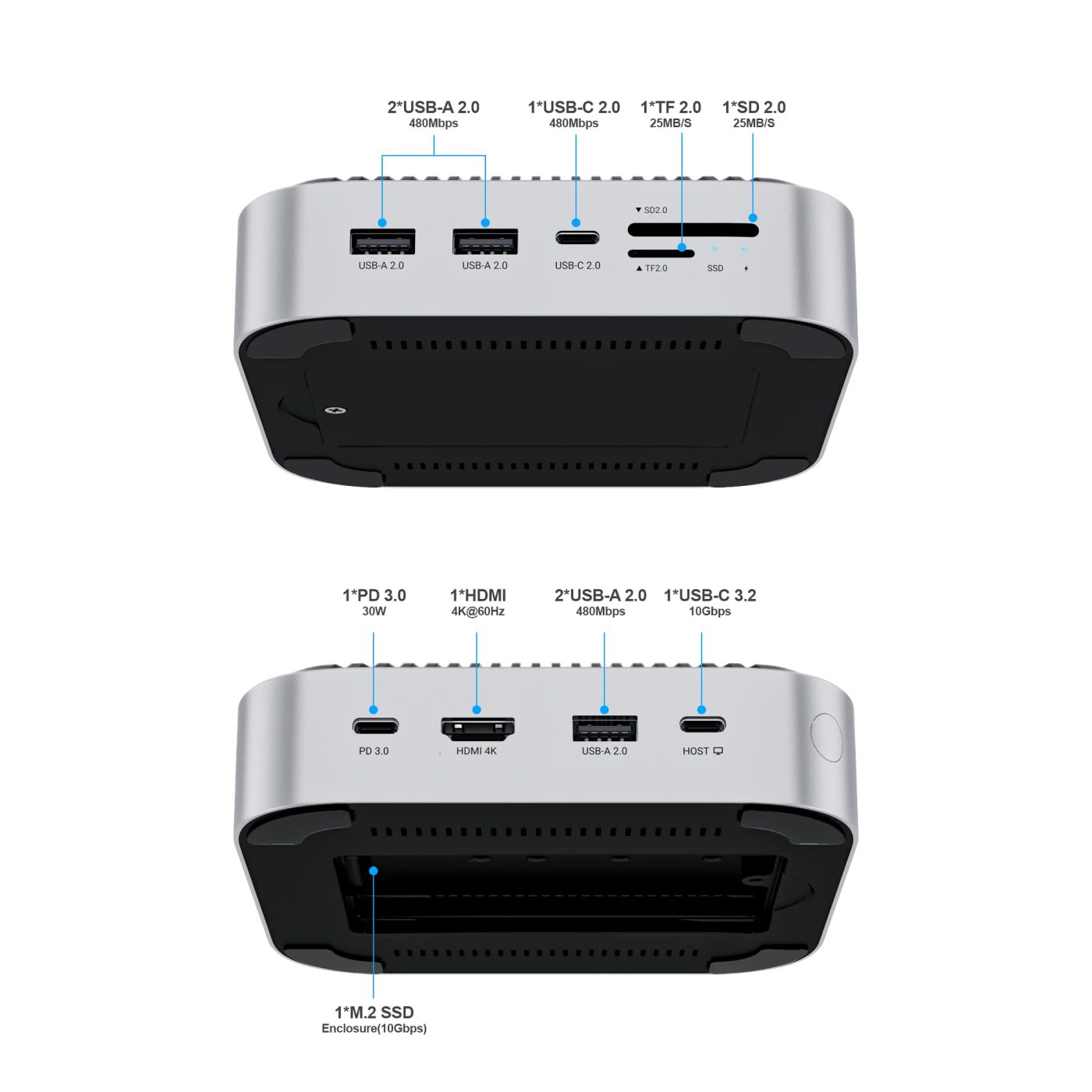

- Front-facing USB-A and USB-C ports let you plug a keyboard, mouse or stick without reaching behind the machine

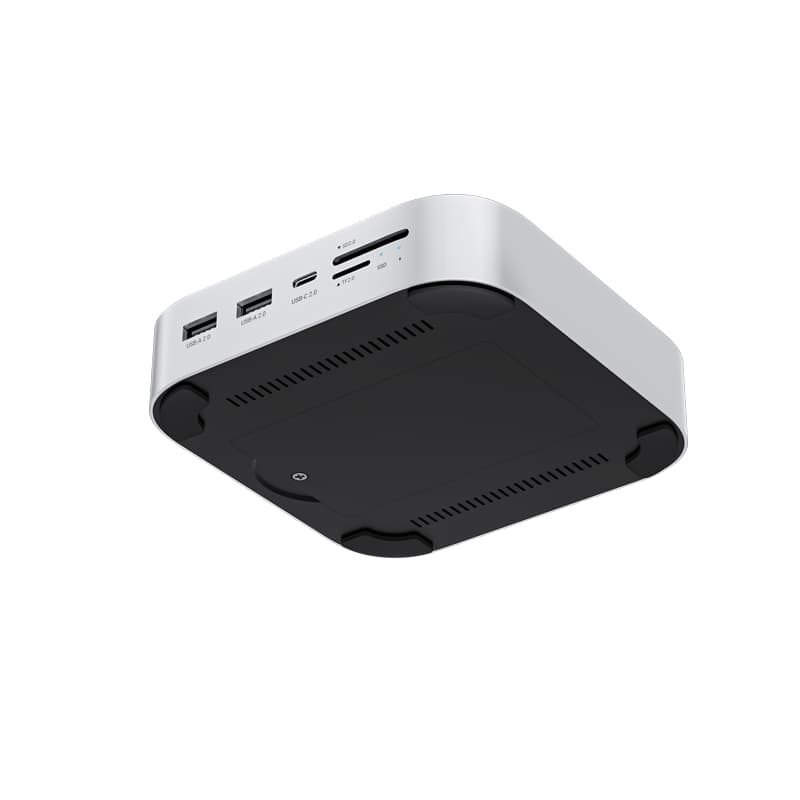

- Spring-loaded SD and MicroSD slots sit on the edge for pulling camera cards at a desk
| Pd3.0 | 5V/3A、9V/3A、12V/5A、15V/5A、20V/5A |
| 项目 | 详细参数 |
| 型号 | PEC- TB1008A90 |
| 类型 | Mac Mini M4 专用 9合1 USB-C 拓展坞 |
| 主机/上行 | 1× USB-C（USB 最高 10Gbps，DP 2.1 Alt Mode，支持热插拔，正反盲插） |
| Usb 数据 | 3× USB-A + 1× USB-C，480Mbps（USB 2.0）; 共限流 2.2A |
| 存储扩展 | 1× M.2 NVMe SSD 插槽（2230/2242/2260/2280，最高 8TB; 不支持热插拔） |
| 读卡器 | 1× SD 2.0 + 1× MicroSD/TF 2.0（单卡最高 1TB，约 25MB/s，双卡单读） |
| 电源输入 | 1× USB-C PD3.0（PD30W; 5V/9V/12V/15V/20V; 仅为拓展坞供电） |
| 材质 | 铝合金 + ABS/PC |
| 尺寸 | 约 127 × 127 × 33 mm（与 Mac Mini M4 尺寸一致） |
| 工作温度 | 0℃ – 40℃ |
| 电源适配器 | PD3.0：5V/3A、9V/3A、12V/5A、15V/5A、20V/5A |
| 认证 | CE、FCC、RoHS（REACH 及区域认证可按需提供） |
| 质保 | 12 个月 |
