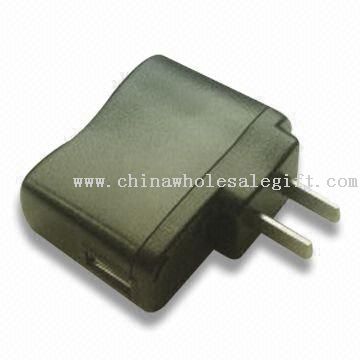

5W AC/DC USB Battery Charger Adapter for Mobile Phone, iPhone, Laptop, iPod and MP3 Player

Product Detailed Description

• Features:
  • Single input, wall mount style
  • Single output max 5W, anywhere output voltage 5 to 15V DC
  • Optional cc mode for mobile
  • Meet CEC regulation, efficiency level V
• Characteristics:
  • Input voltage: 90 to 264V AC
  • Input current: 0.1A maximum
  • Efficiency: 75% or better under maximum load (average efficiency) fit requirement for CEC models
  • Inrush current: 50A (max) at 240V (15A at 90V AC, 18A at 115V AC, 31A at 230V AC, 33A at 264V
  • Output voltage: 5V, ±5 % (any where output voltage)
  • Voltage regulation: ±5% maximum
  • Maximum power: 5W
  • Withstand voltage: I/P-O/P: 3,000V AC
  • Operating temperature: -20 to +40℃
  • Storage temperature: -40 to 70℃
  • Operating humidity: 5 to 95% RH
  • Protection: short circuit
  • Safety: IEC/UL/EN, 60950-1, CE, LVD
  • EMI: (EN55022, CISPR22, FCC part 15) class B, EN61000-3-2, 3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024
  • Standard output connector: USB on case or 1.5m cord with DC barrel jack
• Model list:
  • FHA05-050060-wz: 90 to 264V DC, +5.00V DC, 0 to 0.6A, 3.0W
  • FHA05-050100-wz: 90 to 264V DC, +5.00V DC, 0 to 1.0A, 5.0W
  • FHA05-090050-wz: 90 to 264V DC, +9.00V DC, 0 to 0.5A, 4.5W
  • FHA05-120040-wz: 90 to 264V DC, +12.00V DC, 0 to 0.4A, 4.8W
  • FHA05-150030-wz: 90 to 264V DC, +15.00V DC, 0 to 0.3A, 4.5W
  • Note: the suffix of model no. "w" means AC plug type code
    • xxx/10 denote output voltage (unit: V)
    • yyy/100 denote output current (unit: A)
    • w = A, Australian plug
    • w = B, British plug
    • w = C, China plug
    • w = U, US plug
    • w = E, EU plug
    • z = "Blank" for output DC cord
    • z = U for USB
