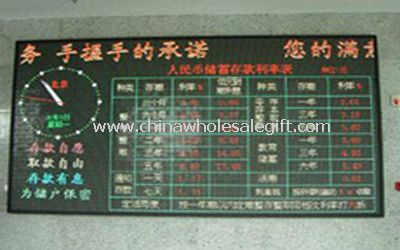

4.75mm LED Moving Sign
| Model No. | CWG40545 |
|---|---|
| Sample Time | 7 days |
| OEM / ODM | Available |
| Port | Shenzhen or HK,China |
| Views | 858 views |
US$ 6~9 /Piece | Get Latest Price
Product Detailed Description
Pixel Pitch: 4.75mm
Module Size: 304mm× 152mm
Density Of Pixel: 44321dots/m2
Pixel Configuration: 1R1G
Module Resolution: 64 x 32pixels
Drive Method: 1/8 Scan
Viewing Angle: 110° (horz. )/ 50° (vert. )
Max. Power Consumption: 600w/m2
Average. Power Consumption: 300W/m2
Voltage: 110-240V AC
Frame rate: 60Hz / sec
Refresh rate: ≥ 450Hz / sec
Colors: 65536 colors
Brightness: 1, 000CD/sqm.
Lifetime: 100, 000 hours
Viewing Distance: 15 - 300 meters
Best Viewing Angle: Horizontal: <160° , Vertical: <160°
Temperature Range: Storage: -40deg. To +85deg.; Working: -15deg. To +50deg.
Video Signal: RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION...etc
Control system: Synchronized with PC Controlled
Packing: 2 cabinets into a plywood case or in 1 flight box
