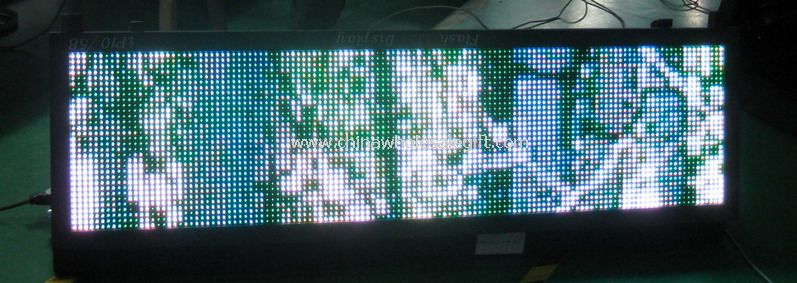

LED Moving Sign
| Model No. | CWG40544 |
|---|---|
| Sample Time | 7 days |
| OEM / ODM | Available |
| Port | Shenzhen or HK,China |
| Views | 1287 views |
US$ 5~6 /Piece | Get Latest Price
Product Detailed Description
1. Function and Technology Character
(1) Multiform file formats, such as VGA, Video, AVI, MOV, MPG, DAT, VOB and so on are comprehensive.
(2) Information source can be camera, video, VCD, DVD, LD, TV and so on.
(3) Clear picture without flicker and distortion.
(4) Brightness, contrast, saturation can be adjust by itself and manual.
(5) Show everything with your PC does synchronously.
(6) Super correcting technology for distortion.
(7) One interface for sound signal and two for video signal at least.
(8) Connected and controlled by PC via LAN and remote control.
(9) Multiform language editions, such as English, French, Germany, Greek, Russian and so on.
| Display and Control Feature | Structure Feature | ||
| Specification | Parameter | Specification | Parameter |
| Pixel Pitch | 10mm | Module size | 320mm * 320mm |
| Pixel composing | 1R1G1B | Display resolution/module | 32 dots* 32 dots |
| Wavelength (R) | 625±5 | Standard cabinet size | 960 mm*960mm |
| Wavelength (G) | 522±3 | Weight per sqm | 50 Kg/sqm |
| Wavelength (B) | 567±3 | Protection classification | --- |
| Wave Angle (H) | 120°(H)/120°(V) | Install mode | Wallmount, hung and stand structure |
| Led package | 3in 1 | ||
| Density | 10,000 | Working Power | |
| Display color | 256*256*256 | Specification | Parameter |
| Whiteness brightness | 500 - 650 cd/sqm | Working voltage | AC 220v/380v±10% 50~60Hz |
| Brightness level | 128 grade | Max power/sqm | 5900W/sqm |
| Changing frame frequency | 60 Hz | Average power/sqm | 170W/sqm |
| Refresh | 215/400 Hz | Short circuit protection | Yes |
| Driving method | Constant driving 1/8 | ||
| Control mode | synchronous | Working Environment | |
| Display port | DVI | Specification | Parameter |
| Display mode | 1024*768 1024*1024 | Environment | Indoor |
| Out of control | 1/10,000 ( scattered) | Working temperature | --10~50 C |
| lifetime (Full white-half brightness) | 45,000 hours | Working Humidity | 10~90% |
