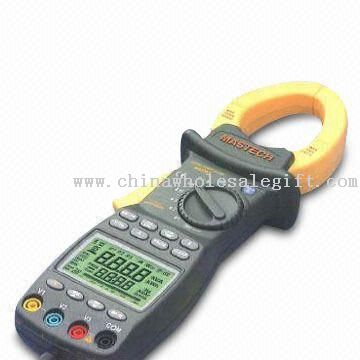

Multifunction Three Phase Power Clamp Meter with LCD Panel
| Model No. | CWG35111 |
|---|---|
| Sample Time | 7 days |
| OEM / ODM | Available |
| Port | Shenzhen or HK,China |
| Views | 1791 views |
US$ 4~24 /Piece | Get Latest Price
Product Detailed Description
- Specifications:
- Maximum conductor size: diameter 50mm
- AC current: 40/100/400/1000A + / - 2 percent
- AC voltage: 100/300/600V + / - 1.2 percent
- Active power (kW): 4/10/40/100/600kW
+ / - 3 percent - Power factor (PF): 0.3 cap to 0.3 ind + / - 0.02
- Reactive power (kVAR): 4/10/40/100/600 kVAR + / - 4 percent
- Active energy (kWh): 10/100/1000/10000kWh
+ / - 3 percent - Frequency: 20Hz to 1000Hz 0.5 percent
- Display: 4 digits LCD 9999
- Power supply: 4 x 1.5V AA
- Operating temperature: 0 deg. C to 40 deg. C
- Dimensions: 300 x 103 x 51mm
- Apparent power (kVA): 4/10/40/100/600kVA
+ / - 3 percent - Weight: approx. 500g
- Features:
- Power measurement of 3-phase 3-wire, 3-phase 4-wire, single-phase mode
- V, A, W, VA, VAR, kWh, PF, Hz measurement
- Double display two parameters on each menu and store 28 groups of measurement parameter
- Total power value and five power parameters of each phase in 3-phase measurement mode respectively
- Auto range and TRMS display
- With PC RS232 interface and windows graphics software
- Display measurement time and select tested signal power supply to the clamp at one time, an instrument can measure for long time
- Large LCD panel, multifunctional button control
