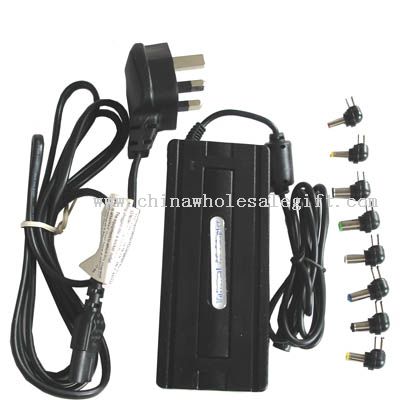

Laptop AC Adaptor
| Model No. | CWG24774 |
|---|---|
| Sample Time | 7 days |
| OEM / ODM | Available |
| Port | Shenzhen or HK,China |
| Views | 1865 views |
US$ 4~11 /Piece | Get Latest Price
Product Detailed Description
| This model is a switching-mode power supply for Laptop,operation at input AC 100V to 240V 47-63Hz,Output: USB port:5V@2A max.DC7voltages:15V/16V/18V/19V/20V/22V/[email protected]/20V/[email protected] max,output power 90 Watt max,with protection functions:Overload protection,Short Circuit Protection,power supply by mains supply.With 8PCS tip connecter to suit to almost Laptops,Select output voltage to suit to Laptop and make sure the polarity of tips connect correct before use. 1) Rated Input Voltage(50-60Hz): AC120V OR AC230V 2) Vibration Input Voltage Rage(47-63Hz): AC100V-240V 3) Input Rated Current: 1.8AMP 4) Input Power: 150VA 5) Output Power(max): 90W 6) Efficiency: >80%(TYP) 7) Output Voltage:15V/16V/18V/19V/20V/22V/24V(0/+0.8V NOLOAD) DC15V-24V USB PORT:5V 8) Output voltage:15V/16V/18V/19V/20V/22V/24V(-0.6/+0.6V@rating load) DC15V-24V Output current:15V/16V/18V/19V/[email protected] MAX22V/24V@90W MAX/3.2A@19W MAX 4.5AMP(max) (no USB PORT output) USB PORT:2A MAX@5V USB PORT 5V2A 9) Overload protection 10) Short Circuit Protection l1) Line Regulation: +/-5% 12) Load Regulation: +/-5% 13) Normal Operating Temperature and Humidity: 5.1 Operating Temperature:0℃ to 40℃ 5.2 Humidity:20% to 80% 16) Storage Temperature and Humidity: 6.1 Storage Temperature:-10℃ to 70℃ 6.2 Humidity: 10% to 90% | |||||||
| Colors Available : | Black | ||||||
| Type of Packing : | Color Box | ||||||
| Package Includes : | User Manual | ||||||
| Packing Information : |
| ||||||
