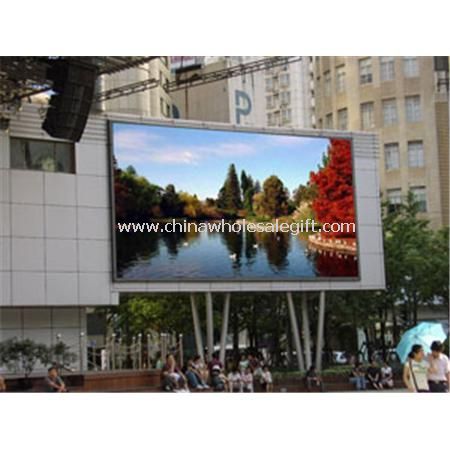

Outdoor LED Sign
| Model No. | CWG40971 |
|---|---|
| Sample Time | 7 days |
| OEM / ODM | Available |
| Port | Shenzhen or HK,China |
| Views | 2056 views |
US$ 5~9 /Piece | Get Latest Price
Product Detailed Description
1. Choose the quality LED chips according to client''s actual requirement.
2. Wider viewing angle, low power consumption and good color uniformity.
3. Use the same level chips to guarantee quality images of the screen.
4. Support the maintenance of single pixel and single LED.
5. Quality raw material and accurate technique insure the long life time of screen, low failure rate.
| Led display screen | Pixel pitch | 20mm |
| Led type | Φ 5mm | |
| Pixel per sq meter | 2500dots | |
| Color of led | 2R1G1B | |
| Module size (W*H) | 320*160 | |
| Cabinet size (W*H) | 1280*960 | |
| Cabinet weight | 60kg | |
| Module resolution | 16*8dots | |
| Cabinet resolution | 64*48dots | |
| Technical parameters | Best viewing distance | 15-140m |
| Working temperature | -20ºC- +65ºC | |
| Storage temperature | -40ºC- +85ºC | |
| Working voltage | 220/110V±10% | |
| Drive mode | Static | |
| Max. power consumption | ≤1100/ cabinet | |
| Ave. power consumption | ≤500/cabinet | |
| Brightness | ≥7000nits | |
| Grey grade | 4096grade | |
| Input signals | RF, S-VIDEO, RGB, RGBHV, YUV, YC, Composition Video | |
| Display color | 68.72 trillion | |
| Refresh rate | ≥480HZ | |
| Viewing angle | 120°(H)/50°(V) | |
| MTBF | ≥10,000hours | |
| Dead point ratio | ≤0.01% | |
| Lifespan | ≥75,000hours |
