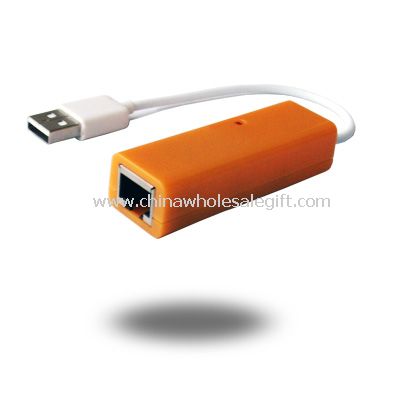

USB 2.0 Card

Product Detailed Description

Port configuration: 1 10/100M Ethernet RJ45 ports, a mini 5P USB port type (convertible A public line)
Maximum transmission data rate: 200M/bps
Data transfer operations: support full / half-duplex operation
Wake-up mode: supports remote wake-up mode
Twisted Pair Specifications: Supports Category 5 UTP twisted pair, length up to 80M
USB Device Compatibility: Compatible with bus-powered and self-powered full-speed / high-speed USB devices
Status indication: a Link Status Indicator
Built-in SRAM: None

Support criteria:
USB Standard: Standard USB2.0 port, support USB3.0/1.1 Agreement
Ethernet standard: IEEE802.3, IEEE802.3u, IEEE802.3x
RJ45 ports Standard: 10Base-T, 100Base-TX
Physical Characteristics:
Dimensions: Length: 65MM Width: 20MM High: 16MM Cable Length: 150MM
Weight: 0.15kg
Electrical Characteristics:
Electromagnetic radiation standards: A class of FC, A class of FCC, VCCI-A
Power consumption: <0.25W
Operating voltage: 5V
Current :200-600ma

Safety Standards:
Safety Standards: cUL
Storage temperature: -10 ~ 70 ℃
Operating temperature: 0 ~ 40 ℃
Storage Humidity: 5% to 90% non-condensing
Humidity: 10% ~ 90% non-condensing

Appearance:
Material PC Material
Button bit with degrees from top to bottom cap pin
Color white, other colors can be selected
