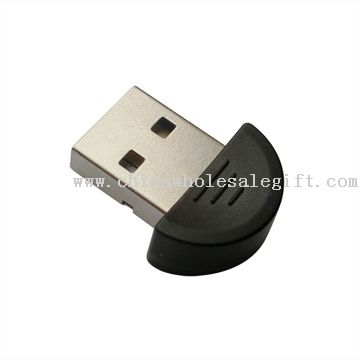

USB mini Bluetooth Dongle
| Model No. | CWG30291 |
|---|---|
| Sample Time | 7 days |
| OEM / ODM | Available |
| Port | Shenzhen or HK,China |
| Views | 1005 views |
US$ 3~30 /Piece | Get Latest Price
Product Detailed Description
General RadioBluetooth Class II: 20 meters (in open space)
Carrier Frequency: 2.4 ~ 2.483GHz
Data Rate: Up to 3Mbps
(The maximum operating range depends on the environmental factors. )
Bluetooth Standard
Bluetooth v2.0 + EDR
Spread Spectrum
FHSS (Frequency Hopping Spread Spectrum)
Modulation Method
GFSK (1Mbps), 4-DOPSK (2Mbps)
8DPSK (3Mbps)
I/O Interface
USB version 1.1
Input Power
DV 5V (USB Power)
Sensitivity
-82 dBm (typical), GFSK
RF Output Power
13 dBm (typical), GFSK
System Support
Windows XP/2000/ME/98SE/Vista
Dimensions
22.4 * 18 * 7.8 mm
LED Indicator
Single LED
Bundled Bluetooth Software
IVT BlueSoleil
(Language Supported: English, Simplified Chinese, Traditional Chinese, Japanese, Korean, French, Italian, German, Spanish)
Advantage Functions
Serial Port Profile
Dial Up Networking Profile
File Transfer Profile
Human Interface Device Profile
Hardcopy Cable Replacement Profile
Headset Profile
Object Push Profile
Synchronization Profile
LAN Access Profile (only avalible in Windows)
FAX Profile (only avalible in Windows)
Personal Area Networking Profile (only avalible in Windows)
Advanced Audio Distribution Profile (only avalible in Windows)
Audio Video Remote Control Profile (only avalible in Windows)
Basic Imaging Profile (only avalible in Windows)
