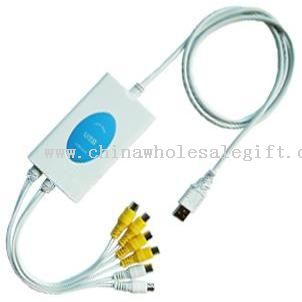

USB DVR Card 2.0
| Model No. | CWG30304 |
|---|---|
| Sample Time | 7 days |
| OEM / ODM | Available |
| Port | Shenzhen or HK,China |
| Views | 771 views |
US$ 3~26 /Piece | Get Latest Price
Product Detailed Description
· 4 channels video input in one card, the maximum display/recording rate is 25 fps under PAL format, and 30 fps under NTSC format.
· 1/4/6/8/13/16 screen display modes are available.
· Multi alarm triggering method: Sensor, motion, video loss, and HDD space shortage.
· Support schedule recording mode, recycling recording method available.
· MPEG4 video compression format. 5 level recording quality options available, and the recording frame rate range from 1 to 30 fps adjustable for each channel.
· Support multi-channel playback, searching by time/date and recording events, images can be zoom/capture/save/print/backup.
· Support remote surveillance and PTZ control through web browser, support dynamic domain name
· Remote playback function.
· Configurable auto reboot function for preventing PC deadlock.
· Support Auto-Mail, Emap and smart phone
| Video Input: | 4 Channels |
| Video Output: | 4 Channels |
| Audio Input: | 3 Channels |
| Audio Output: | 3 Channels |
| Recording Rate: | 30 fps (NTSC), 25 fps (PAL) |
| Display Rate: | 30 fps (NTSC), 25 fps (PAL) |
| Video Resolution: | 704x576,352x288(PAL) 640x480,320x240(NTSC) |
| Compression Format: | MPEG4 |
| Compression Type : | Software Compression |
| Chipset: | |
| Operation System: | Intel P4 Celeron processor,minimum 1700MHz |
| Software Language: | English, Chinese |
| NetWork Type : | TCP/IP |
| Remote Type : | Support Internet Explorer Web Browser |
| Backup Type : | HDD, USB Disk, ZIP, CD-R/W |
| TV Out: | Yes |
| Single System Support : | 0 PCS |
| Card Dimensions: | MM |
| Card Weight: | 0 KG |
