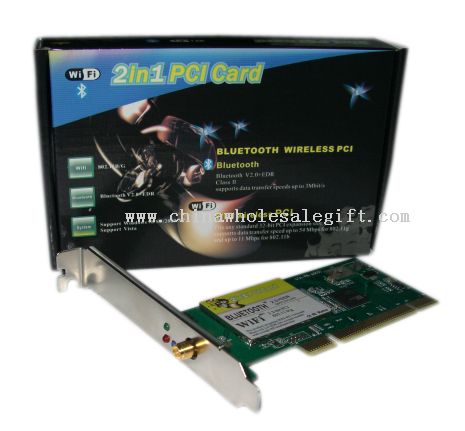

Bluetooth + Wifi 2in1 PCI Card
| Model No. | CWG30729 |
|---|---|
| Sample Time | 7 days |
| OEM / ODM | Available |
| Port | Shenzhen or HK,China |
| Views | 2196 views |
US$ 1~31 /Piece | Get Latest Price
Product Detailed Description
Class 1(100M) Bluetooth V2.0 Adapter+ 54M 802.11G Wifi 2in1 PCI Card, Combination PCI card with Both Bluetooth and Wifi function.Main features as below:
Bluetooth:
* Bluetooth 2.4GHz~2.4835GHz license-free ISM Band frequency hopping
* Connections within ranges up to 100 Meters
* Connect up to 7 devices in a Pacolet
* Data Rate : 2~3Mbps
* Class 1 Bluetooth radio
* RF module sensitivity : -85dbm at 0.1% Bit Error Rate (BER)
* Security : encrypted link, authentication
* Bluetooth profiles support
Wireless LAN:
* 2.4GHz ISM band, unlicensed operation
* IEEE 802.11b/g standard compliant
* Support of 64/128-bit WEP encryption and WPA2
* Operating Frequency / Channel: 2.4-2.47GHz
* Emission type: Direct Sequence Spread Spectrum (DSSS) Technology
* RF Output Power: 802.11g 54M OFDM@25C, 14dBm
* Data Rate: 802.11b: 1, 2, 5.5, 11Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbp
* Range: Indoors: Up to 328 feet (100 meters)
* Sensitivity: 54Mbps: Typical -74dBm @ 10% PER,R
* Working Mode: Infrastructure, Ad-Hoc
